ErgoDeflection Custom Deflection Loupes – SurgiTel

Galilean Loupes

Description

SurgiTel’s next-generation ErgoDeflection™ loupes give you precision optics with true ergonomics and a customizable viewing angle.

Existing deflection loupes in the market often utilize prisms with excessively steep deflection angles, leading many clinicians to adopt non-ergonomic postures by leaning back. SurgiTel’s patent pending ErgoDeflection loupes address this issue by offering a customizable deflection angle, tailored to the clinician’s preferences and requirements. The ErgoDeflection loupe is available in two mounting options, Through-the-Lens (TTL) and Front-Lens-Mounted (FLM). Additionally, with SurgiTel’s patented working distance caps clinicians can extend or shorten the working distance of their loupes for different procedures

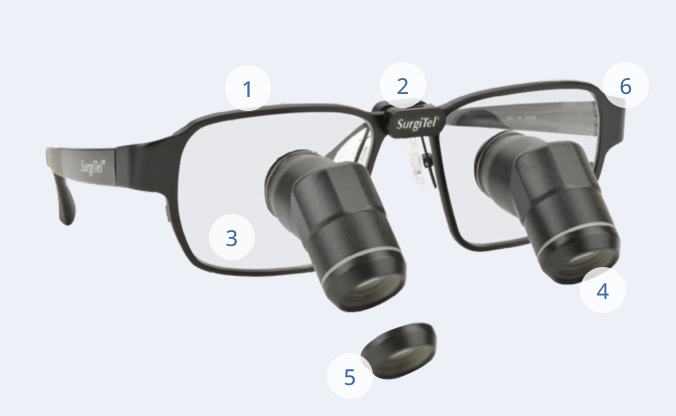

Features
1
High Quality Materials

SurgiTel’s highest grade optical glass with multi-layer anti-reflective coatings, craftsmanship, and compact prism design deliver sharp clarity, wide field of view, and long depth of field.

2
Ergo Fit Nose Pads

SurgiTel’s patented Ergo Fit Nose Pad System offers several options that easily conform over various nose shapes and were also designed to support the weight of the loupes and to create optimal space between the oculars and the eyes.

3
Pantoscopic Tilt and Direct Vision

Ergonomic pantoscopic tilt of the frame and lenses helps eliminate gaps between the face and bottom edge of the lenses for the best protection of your eyes. It also gives you a wide area of direct viewing to your work area

4
Custom Viewing Angle

SurgiTel tailors the viewing angle to your ideal and comfortable working posture. The viewing angle is a combination of the deflection angle of the oculars and the lens.

5
Working Distance Caps

SurgiTel’s patented interchangeable Working Distance Caps can help you adjust the working distance precisely and also allow you to easily update your reading Rx.

6
Patent Pending Deflection Prism

The deflection angle of SurgiTel’s patent pending ErgoDeflection™ loupe is designed to give you a more tailored viewing angle for an optimal neck posture and reach distance. Note that deflection loupes should not cause you to lean back in a non-ergonomic posture.

Caps

*available in FLM only

Note
Deflection loupes will increase your working distance. Moving up one step in magnification power for ErgoDeflection loupes is recommended in order to give you the same magnified image size as your straight Galilean or prismatic loupes. This is because sitting in a more upright posture will increase your working distance. Your working distance with straight ergonomic loupes will be longer than with non-ergonomic loupes and your working distance with ErgoDeflection loupes will be longer than with straight ergonomic loupes.

See the ErgoDeflection loupes in person.

Schedule a free demo today!
